哈萨克斯坦采购需求:履带式底盘、橡胶履带式底盘、钢履带式底盘、钻机底盘、移动式破碎机底盘、MST1500 上滚轮

原文:Crawler Undercarriage, Rubber Track Undercarriage, Steel Track Undercarriage, Drilling Rig Undercarriage, Mobile Crusher Undercarriage, MST1500 Top Roller

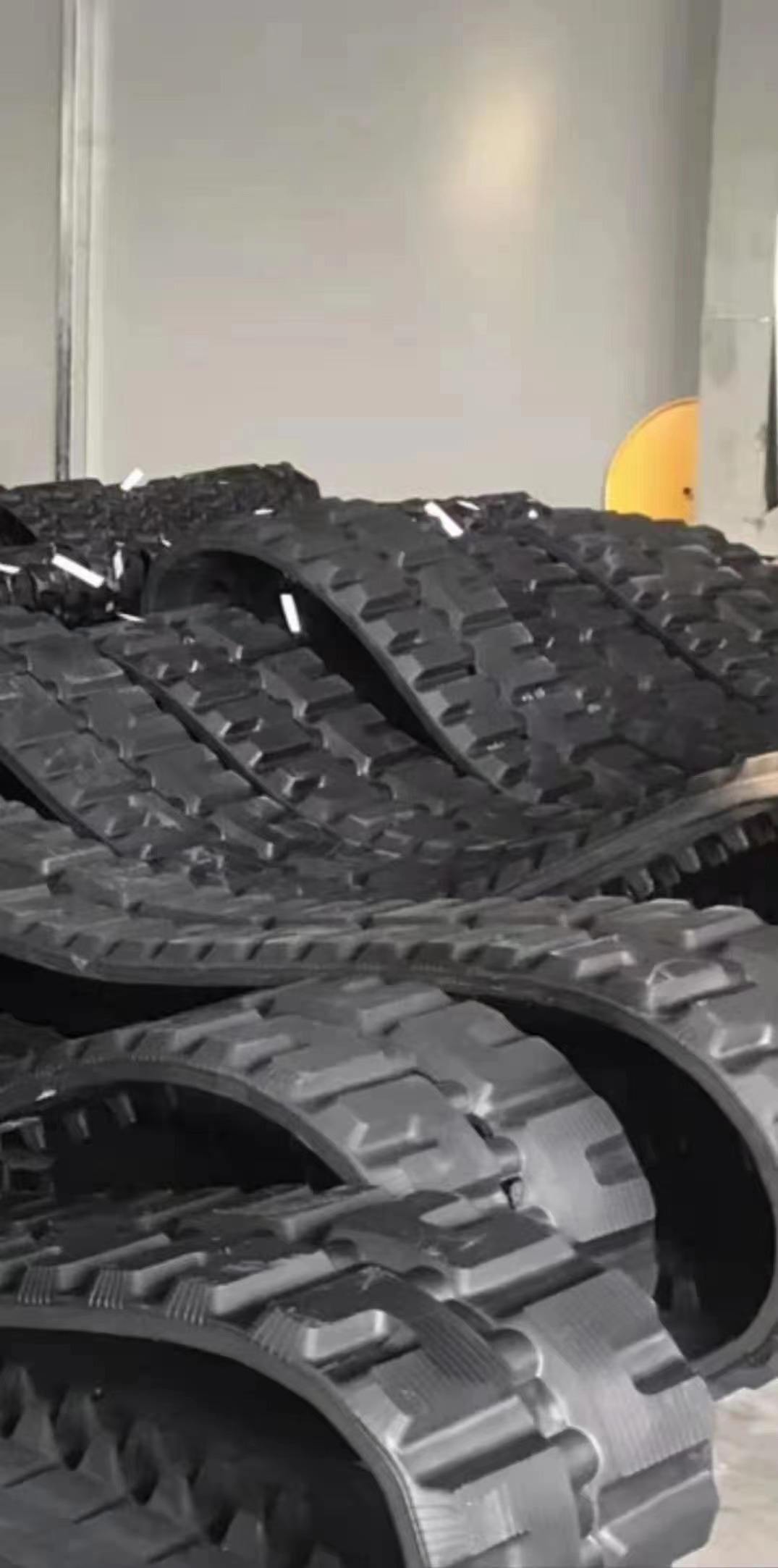

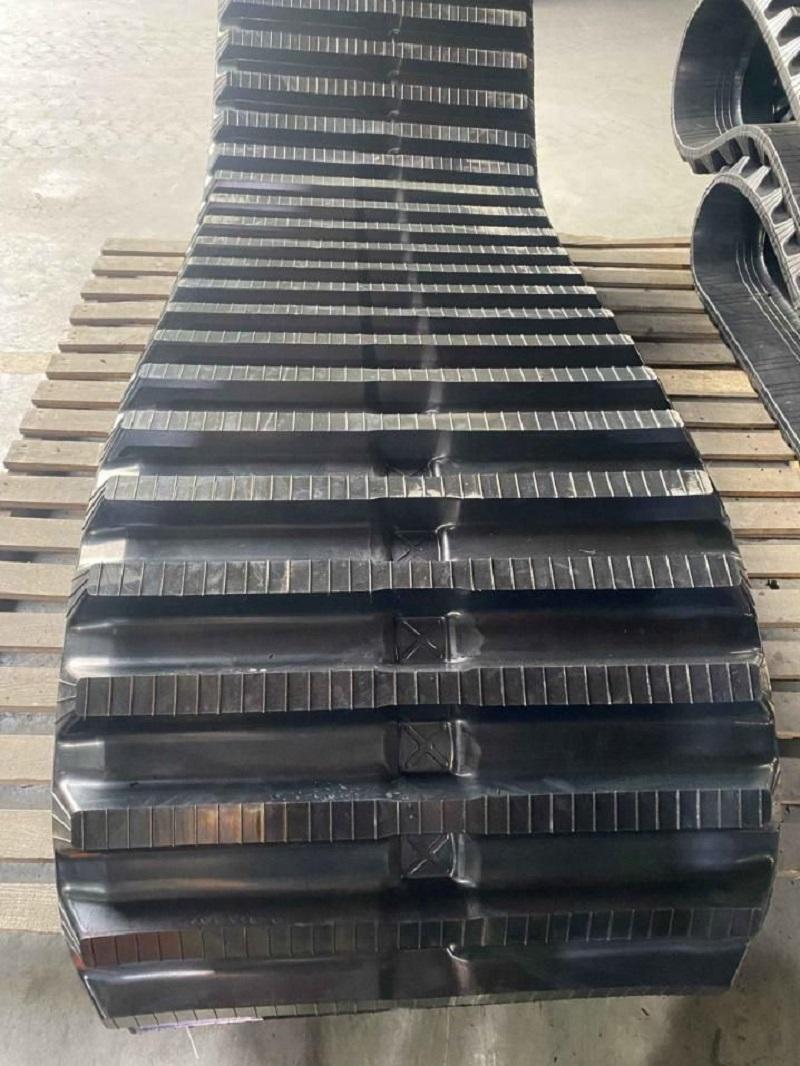

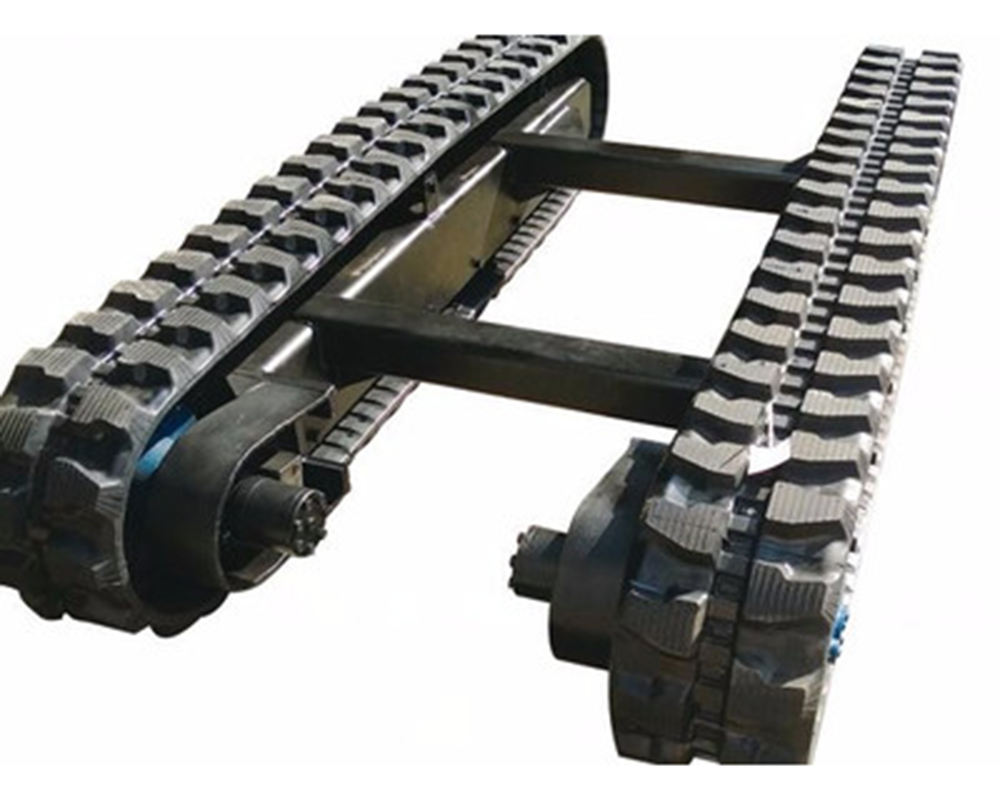

参考产品图片:
  • B2B平台
  • 哈萨克斯坦
  • 2026-05-18
  • allayar****@****l.com
  • 770****1993
注册免费获取联系方式(剩余查看次数2)

采购商询盘内容

We are in the process of developing an 18-ton tracked vehicle and are currently focusing on the track design. The concept includes a rubber outer structure with 5 layers of nylon cord reinforcement and 1 layer of steel cord reinforcement. The specifications are a track width of 650 mm, with 75 steel cords of 4.2 mm diameter and a nylon cord thickness of 1.2 mm. We would like your expertise on a few key points: Firstly, is the combination of 5 layers of nylon and 1 layer of steel cord suitable for our application? Secondly, could you recommend the appropriate nylon standard that would work best? We also need guidance on the right steel cord specifications, including tensile strength, along with a recommended rubber compound. Lastly, any insights on the expected service life of the track would be greatly appreciated. We can provide STEP and PDF files for further reference if necessary.
我们正在研发一款18吨级履带车辆,目前正专注于履带设计。该履带采用橡胶外层结构,内含5层尼龙帘布加固层和1层钢丝帘布加固层。具体规格为:履带宽度650毫米,钢丝帘布层包含75根直径4.2毫米的钢丝,尼龙帘布层厚度1.2毫米。 我们希望您能就以下几个关键问题提供专业意见:首先,5层尼龙和1层钢丝绳的组合是否适用于我们的应用?其次,您能否推荐最合适的尼龙标准?我们还需要关于钢丝绳规格(包括抗拉强度)以及推荐橡胶配方方面的指导。最后,如果您能提供关于履带预期使用寿命的任何信息,我们将不胜感激。如有需要,我们可以提供STEP和PDF文件供您参考。
